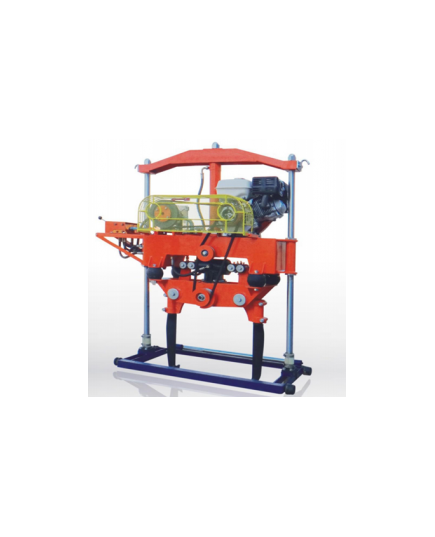

Hydraulic Turnout Tamping Machine for track maintenance work
YCD-2 hydraulic turnout tamping machine is a special maintenance mechanical equipment for railway turnouts. it is mainly used for tamping the sleeper ballast in the turnout section, and can also take into account the tamping effect of the main track bed ballast. BENIFITS
This machine uses Honda gasoline engine GX390 as power, light weight, easy to start, at low the low noise and low plution.which great improves the working environment of workers and reduces labor intensity
SPECIFICATION
| Model | YCD-2 |
| Type | Rail Tamping Machine |
| Material | Stainless Steel |
| Dimensions (L x W x H) (mm) | 1420*660*1380mm |
| Engine | HONDA GX390 petrol engine |
| Power | 6.6 kW |
| Vibrating frequency | 60~70 Hz |
| Exciting force | ≥34kN |
| Clamping force | ≥9.4 kN |
| Insertion force | ≥2.9 kN |
| Working pressure | 5.0 MPa |
| Tamping insertion depth: | 90~ 120mm under sleepers |
| Weight | 337 kg |
